Silent Angel
Forester F2
6-Fold Linear Power Supply

Excl. TAX € 1,114.88
Incl. 21 % TAX € 1,349.00

Fuse upgrade

S28 Anti Vibration Feet

Wissen

Quad output 12 V @ 3 A , 12 V @ 1 A, 5 V @ 2 A & 5 V @ 1 A
Advanced fully symmetrical low noise circuit
MOSFETs in output stage
Mains voltage 230 or 115 V (switchable)
Maximal power consumption 100 W

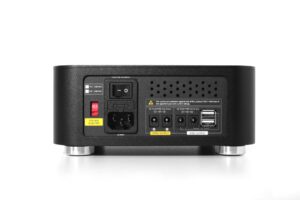

2 barrel 5.5/2.1 mm & 5.5/2.5 mm and USB-A outputs
4 DC barrel cables 5.5/2.1 & 5.5/2.5 mm, 60 cm supplied
LED indicators: 2 X power + 2 X over temperature protection
Dampened metal enclosure
Weight 4.2 kg / 9.3 lbs
Dimensions 200x200x111 mm / 7.88×7.88×4.38 inch

The stable linear power supply with highly accurate versatile DC outputs to support Hi-Fi system. Power is the bloodstream to all electronic devices, and it’s especially crucial for the highly sensitive Hi-Fi audio equipment, being stable & less-noise, having low power consumption & guarding the audio nature.

F2 is to simultaneously provide the the stable DC power signals to different Hi-Fi audio equipment.

Designed to Power Various Hi-Fi Devices

A great solution to power high-frequency Hi-Fi audio system, and adjust the optimal power condition for Hi-Fi sound quality.

Employs 4 types of DC output, 12V/3A; 12V/1A; 5V/2A; 5V/1A,
regarding 5V outputs, there are also USB interfaces for user to choose.

By connecting to Bastei, DC upgrade cable, F2 could serve the greater quality of power signal to Hi-Fi system, and improve the overall sound quality.

Forester Power Expertise & Substantial Exterior

Fully symmetric toroidal-transformer-formed circuit, and low-noise MOSFET paralleled to lower inner electronic interference, also with high-permeability EMI absorber embedded to eliminate high frequency electrical noise.

Adopts thick aluminum alloy for all panels, the front and back panels are thick as 8 mm, all the designs are meant to reduce any possible machine vibrations & noises.

SECC processing galvanized steel for top and bottom cases, which is highly anti-oxidation and highly anti-corrosion.

From inner circuitry to outer enclosure, all the designs are built to pursue ultimate Hi-Fi quality, F2 would bring the consistency and integrity and vividness back to life in digital music.

is to simultaneously provide the the stable DC power signals to different Hi-Fi audio equipment.

/3A can power Z1; 12V/1A can power E1 / N8 Pro, 5V/2A can power M1/M1T; 5V/1A can power N8, etc.

Please Note:

The maximum current gross output of two 12V ports is 3A, which means if you connect 12/3A port to a device which requires exactly 12/3A input, then the 12V/1A port cannot be used.
The maximum current gross output of two 5V ports is 2A, which means if you connect 5V/2Aport to a device which requires exactly 5V/2A input, then the 5V/1A port cannot be used.

(DC) 12V/3A plug*1, 5.5 x 2.5 mm; 12V/1A plug*1, 5.5 x 2.5 mm

(DC) 5V/2A plug*1, 5.5 x 2.1 mm; 5V/1A plug*1, 5.5 x 2.1 mm
